The Ultimate Gaming PC Power Supply Guide (2025 Edition)
When building a gaming PC, everyone obsesses over the CPU and GPU—but there’s a silent hero that can make or break your system: the power supply unit (PSU). It’s not the flashiest component, but it’s one of the most important.
A poor-quality or underpowered PSU can lead to system crashes, hardware instability, and even long-term component damage. This guide will help you choose the right power supply for your gaming setup in 2025—based on wattage, efficiency, connectivity, and future-proofing.
Why Your Power Supply Matters (More Than You Think)
Every component in your PC relies on clean, stable power. While a cheap PSU might work, it can cause serious issues down the line: thermal throttling, unexpected shutdowns, system instability, or worse—hardware failure.
A reliable PSU ensures:
- Stable performance under load
- Longer lifespan for your components
- Efficient energy use and reduced heat/noise
- Protection against voltage spikes or surges
How Much Wattage Do You Really Need?
More watts doesn’t always mean better. Many users make the mistake of buying a 1000W PSU for a mid-range build, wasting money and reducing efficiency. Here's a better approach:
| PC Type | Recommended Wattage |
|---|---|
| Entry-level Gaming | 500–600W |
| Mid-range Gaming | 600–750W |
| High-end/4K/Streaming | 750–1000W+ |
Rule of thumb:
Sum the peak wattage of your CPU + GPU + other components and add 25–30% headroom for spikes and future upgrades.
Tip: Tools like the Seasonic Wattage Calculator can give you precise estimates based on your parts.
Efficiency Ratings: What Do 80 PLUS Labels Mean?
Energy efficiency isn’t just about saving on your electricity bill—it also affects heat output, noise levels, and system stability.
80 PLUS Certification Breakdown:
| Certification | 20% Load | 50% Load | 100% Load |
|---|---|---|---|
| 80+ Bronze | 82% | 85% | 82% |
| 80+ Silver | 85% | 88% | 85% |
| 80+ Gold | 87% | 90% | 87% |
| 80+ Platinum | 90% | 92% | 89% |
| 80+ Titanium | 92% | 94% | 90% |
Recommended for gamers:
- 💸 Best value: 80+ Gold
- 🔇 Low heat/noise: 80+ Platinum
- 🔋 Max efficiency (workstations/overkill setups): 80+ Titanium
👉 Ideal PSU usage is between 40–80% load. Oversized units can actually be less efficient at low loads.
Connectors You’ll Need
Most modern gaming PSUs come with all the connectors you need, but double-check before buying:
- 24-pin ATX (motherboard)
- 8-pin EPS (CPU power)
- 6+2 pin PCIe (GPU power)
- SATA (SSDs, HDDs)
- Molex (fans, RGB accessories)
Note: M.2 SSDs don’t require power cables. But if you're running multiple SATA drives or RGB accessories, make sure your PSU has enough connectors.

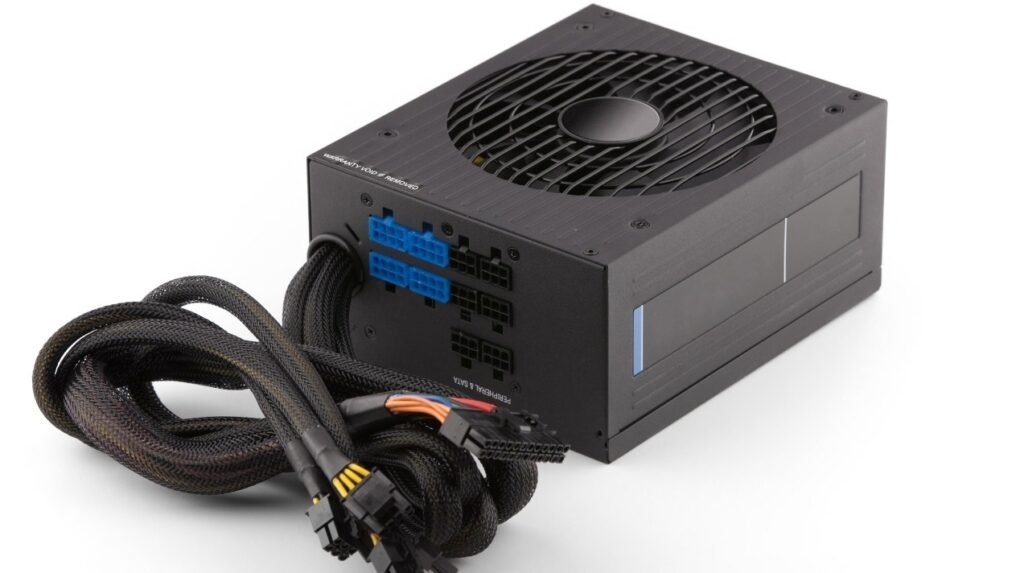

Modular vs. Non-Modular Power Supplies
| Type | Pros | Cons |
|---|---|---|
| Non-Modular | Cheapest | Messy cables, poor airflow |
| Semi-Modular | Some flexibility | Still some fixed cables |
| Fully Modular | Best airflow, clean build | More expensive |
✅ Verdict: Go fully modular if you want clean cable management, airflow, and easier future upgrades. Worth the investment.
Should You Get an ATX 3.0 or ATX 3.1 PSU?

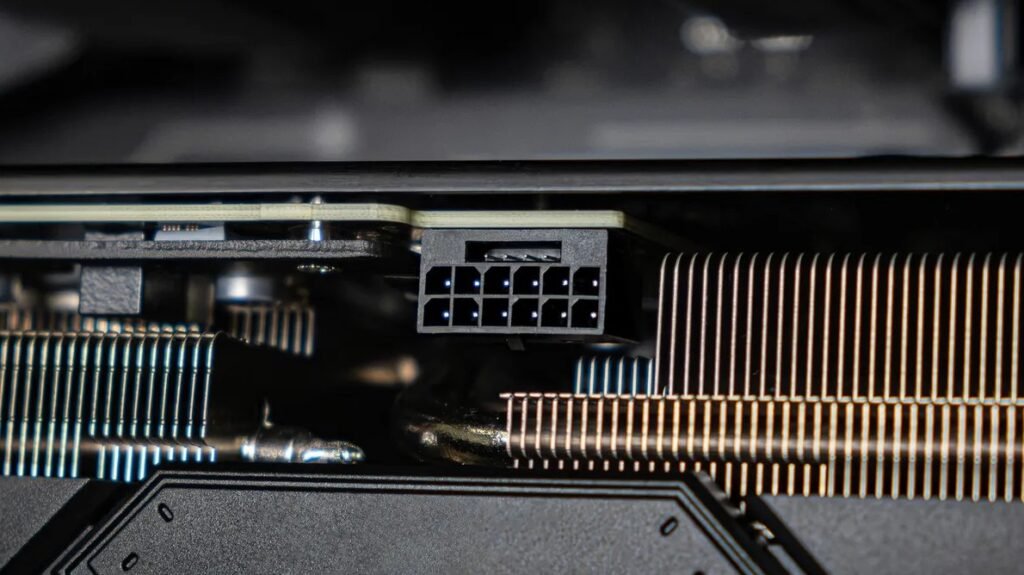

The ATX 3.0 standard is built for next-gen GPUs, especially the NVIDIA RTX 40-series and beyond. These graphics cards require 12VHPWR connectors that can deliver up to 600W of power through a single cable.
Benefits of ATX 3.0 / 3.1:
- Supports higher transient power spikes (e.g. gaming load changes)
- Future-proof for next-gen GPUs
- Cleaner, more compact cabling
- Often more efficient and better built
If you're using a high-end GPU or want to future-proof, get an ATX 3.0 or 3.1 PSU.
Our Top Pick for Gaming PSUs in 2025: Seasonic
After testing and analyzing thousands of builds, one brand continues to stand above the rest: Seasonic.
Why we recommend Seasonic:
- Legendary reliability (ultra-low failure rates)
- Excellent efficiency (Gold, Platinum, Titanium models)
- Fully modular designs with premium cables
- ATX 3.0 ready with native 12VHPWR connectors
- Quiet operation, even under load
Whether you're building a budget rig or a water-cooled beast, Seasonic has a PSU that fits.
Final Thoughts
Don’t let the PSU be an afterthought. A solid power supply is the foundation of a reliable and future-ready gaming PC. Choose one with the right wattage, proper connectors, high efficiency, and—if possible—support for ATX 3.0.
Our recommendation:
For most gamers in 2025, a 750W 80+ Gold fully modular ATX 3.0 PSU is the perfect balance of performance, efficiency, and future-proofing.
